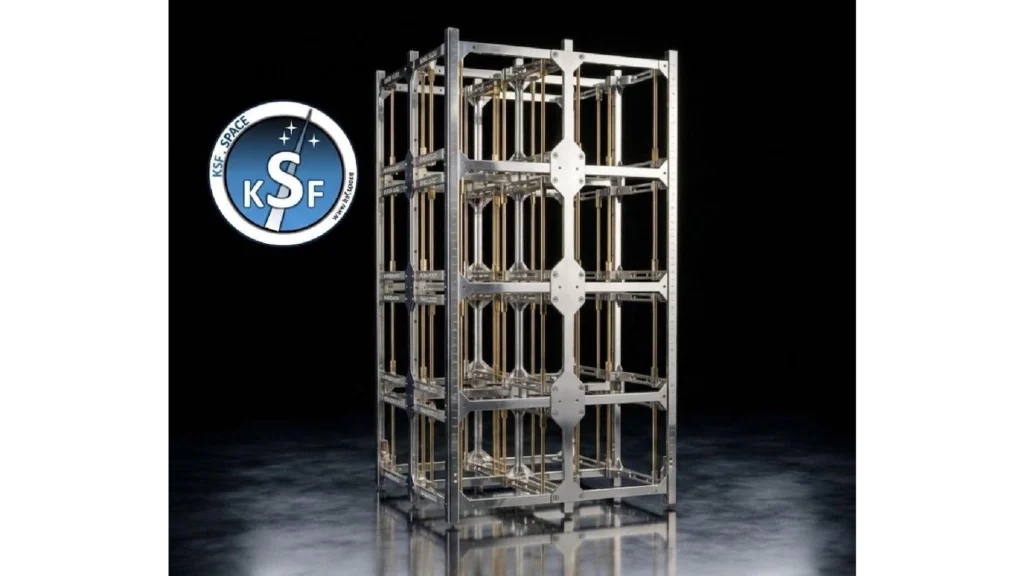

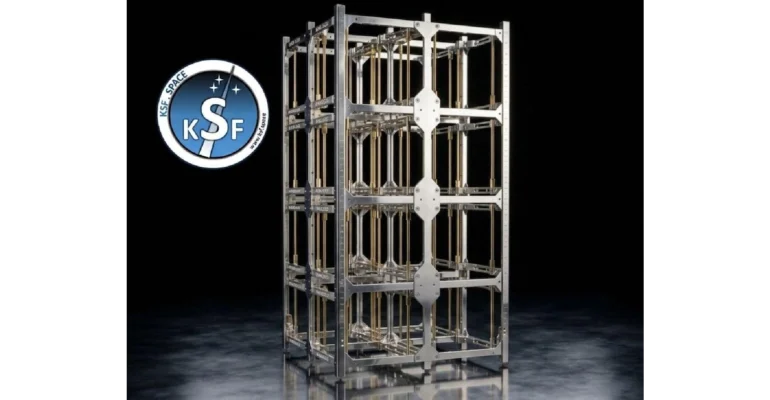

The Rise of the 16U CubeSat Structure in Modern Space Missions

For years, the “U” standard was dominated by the 1U, 2U, and 3U form factors. However, as payloads became more sophisticated—requiring more power, advanced ADCS (Attitude Determination and Control Systems), and larger optical or communication instruments—the industry shifted toward larger volumes like 6U, 12U, and eventually the 16U cubesat structure.

The 16U cubesat structure provided by KSF Space offers a unique “sweet spot.” It provides enough volume for complex science experiments while remaining significantly more affordable to launch than traditional microsatellites. By utilizing a nanosatellite structure frame that adheres to strict CubeSat Design Specifications (CDS), developers can leverage existing rideshare launch opportunities (Schappi, 2024).

Why KSF Space Offers the Most Affordable Cubesat Frame

When you build your satellite, the budget is often consumed by the mechanical structure. Traditional manufacturers often charge a premium for specialized aerospace alloys and flight heritage. KSF Space has disrupted this model by offering a cubesat frame that is:

1. Material Efficient: Using high-grade 6061 or 7075 aluminum, optimized for mass-to-strength ratios.
2. Modular by Design: Whether you need a 1U, 3U, or a massive 24U, the assembly process is standardized.
3. Flight-Proven: Missions like the TOLIMAN mission and EXCITE have demonstrated that 16U platforms are the future of low-cost space telescopes and technology demonstrations (Tuthill et al., 2026; University of Pisa, 2024).

Technical Specifications: The 16U Nanosatellite Structure Frame

The KSF Space 16U cubesat structure is designed to meet the rigorous demands of Low Earth Orbit (LEO).

From 1U to 24U: A Scalable Ecosystem

KSF Space doesn’t just stop at 16U. Their catalog covers the entire spectrum of modern space research:

• 1U & 2U: Ideal for educational “CanSat” upgrades and simple sensors.
• 3U & 6U: The “workhorses” of the industry for IoT and Earth Observation.
• 12U, 16U, & 24U: High-performance platforms for deep space exploration or complex telescopes.

How to Build a Satellite Using a 16U Frame

Building a satellite is no longer reserved for national agencies. With a KSF Space kit, you can build your satellite following these fundamental steps:

1. Define the Mission and Requirements

Every cubesat structure must support the payload’s thermal, mechanical, and electrical needs. Start by determining if your mission requires a 3U or a 16U volume based on your instrument’s size and power consumption.

2. Choose the Right Nanosatellite Structure Frame

Select a structure that offers ease of integration. The KSF Space 16U cubesat structure features removable side panels and internal mounting rails, making it easy to access electronics during the “FlatSat” testing phase.

3. Subsystem Integration

A standard build includes:

• OBC (On-Board Computer): The “brain” of the satellite.
• EPS (Electrical Power System): Batteries and solar panel interfaces.
• ADCS: Critical for pointing your 16U satellite toward Earth or stars.
• Communication: Radios for downlinking data.

4. Testing and Qualification

Before flight, your cubesat frame must undergo vibration, thermal-vacuum (TVAC), and electromagnetic compatibility (EMC) testing to ensure it survives the launch and the harsh vacuum of space (Schappi, 2024).

Flight References and Heritage: Ready for Your Mission

The KSF Space 16U cubesat structure is not just a prototype; it is a flight-ready product. With increasing interest in missions like TOLIMAN, which uses a 16U bus to search for planets in Alpha Centauri, the reliability of this form factor is proven (Tuthill et al., 2026).

By choosing a KSF Space cubesat structure, you are using a platform that has been vetted by researchers and entrepreneurs globally.

Customizing Your Spacecraft: The “Customize Structure” Advantage

Every mission is unique. Sometimes a standard 6U or 12U isn’t enough. KSF Space offers a customize structure service, allowing you to modify the internal mounting points, add specific apertures for cameras, or adjust the rail tolerances for specific deployers. This flexibility ensures that your nanosatellite structure frame fits your mission—not the other way around.

FAQ: Frequently Asked Questions

What is the most affordable cubesat structure?

The KSF Space 16U and 6U frames are widely considered the most cost-effective professional-grade structures, offering a balance of low acquisition cost and high flight readiness.

How much does it cost to build a 16U cubesat?

While the 16u cubesat structure is affordable, the total cost depends on the payload. However, using a KSF Space frame can save up to 40% on the mechanical budget compared to legacy providers.

Is the 16U frame compatible with all launchers?

Yes, the KSF Space 16U cubesat structure is designed to meet standard deployer specifications, making it compatible with SpaceX, Rocket Lab, and Indian PSLV launches.

Can I build my own cubesat structure?

While you can design one, it is highly recommended to purchase a flight-proven cubesat frame from KSF Space to ensure it passes the rigorous safety inspections required by launch providers.

References

• Schappi, C. (2024). A Novel Modular CubeSat Design Implementing Additively Manufactured Components. Old Dominion University. https://vsgc.odu.edu/wp-content/uploads/2024/04/Schappi_C_VSGC_Paper.pdf
  • Cited by: 2
• Tuthill, P., Betters, C., Charles, M., Crous, F., & Donald, G. (2026). TOLIMAN mission: a low-cost space telescope for high-precision narrow-angle astrometry. Journal of Astronomical Telescopes, Instruments, and Systems, 12(2), 024001. https://doi.org/10.1117/1.JATIS.12.2.024001
• University of Pisa. (2024). Optimization strategies for a 16U CubeSat mission – EXCITE. Materials Research Forum. https://mrforum.com/wp-content/uploads/open_access/9781644903193/26.pdf

For more information on how to start your mission, visit www.ksf.space.
